How to Choose a Reciprocating Pump: Piston, Plunger

Reciprocating pumps are widely used in oil and gas field water injection, high pressure cleaning, cementing pressurization, drilling mud, and other fields due to their precision and stability. Among them, piston pumps and plunger pumps are the most frequently used types.

1. Working Principle

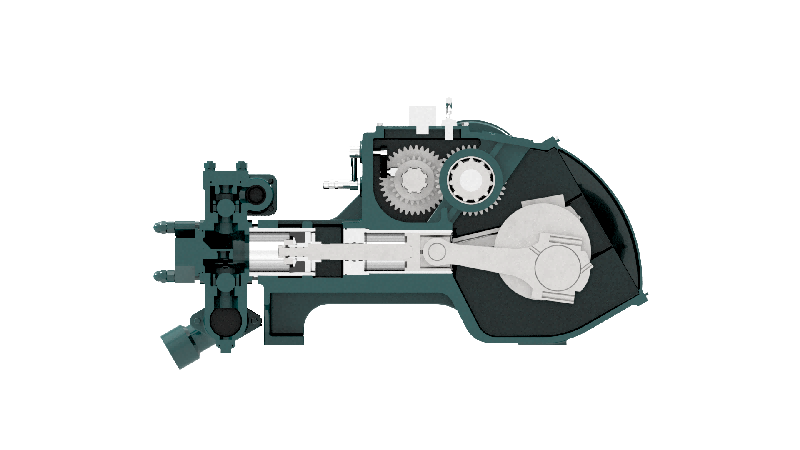

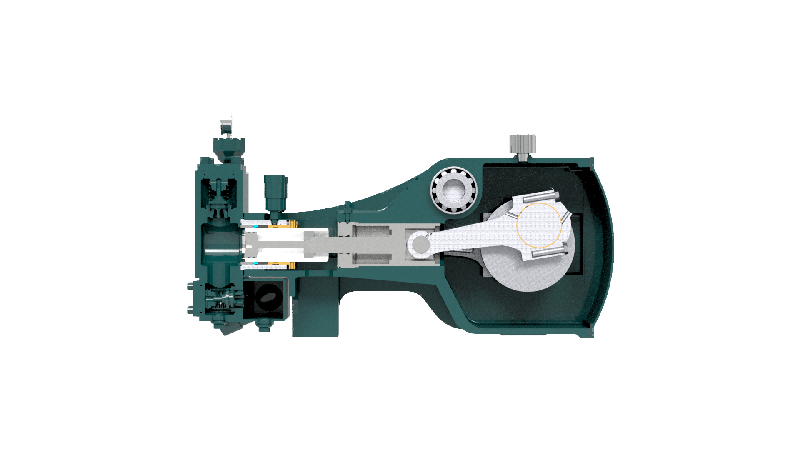

Both piston pumps and plunger pumps belong to the positive displacement principle, but their structures are fundamentally different. Piston pumps rely on a piston assembly reciprocating within the cylinder, using piston rings or soft seals in contact with the cylinder wall to form a seal. Plunger pumps use a precision-machined solid plunger that slides within a fixed cylinder liner or packing gland, maintaining high-pressure sealing through the fit between the plunger's outer surface and the sealing elements.



2. Differences Between Piston Pumps and Plunger Pumps

3. Advantages and Limitations of Reciprocating Pumps

Their advantages lie in high flow control precision and strong pressure adaptability. They can establish extremely high discharge pressures, meeting the demands of deep well water injection and high-pressure cleaning. However, they have many moving parts, and seals are prone to wear, resulting in high maintenance workload and certain requirements for media cleanliness. This is especially true for plunger pumps — hard particles can easily damage the sealing surface and shorten service life.



For low-pressure, large-flow, particle-containing applications, piston pumps are preferred; for high pressure applications with relatively clean media and wear resistance requirements, plunger pumps are preferred. Elephant Machinery specializes in reciprocating plunger pumps, piston pumps, and complete solutions.
