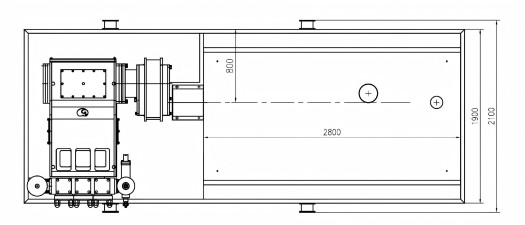

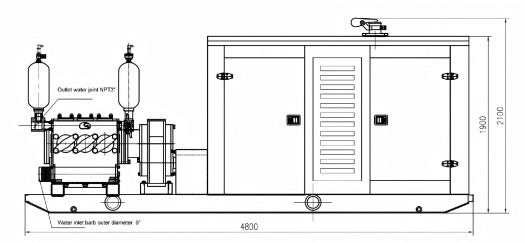

CBW-2000 Pipeline Booster Plunger Pump Equipment

The CBW-2000 Pipeline Booster Pump is a diesel-powered horizontal triplex reciprocating single-acting plunger pump equipped with an automatic transmission and wireless remote control system.

It is suitable for various industrial scenarios requiring increased fluid pressure within pipelines, such as boosting crude oil pressure from wellheads to gathering stations in petroleum extraction, as well as addressing insufficient pressure in pipeline systems for mine drainage and fluid transportation in industrial production processes.

During pressurization, its unique reciprocating piston/plunger motion alters the pump chamber volume. As the plunger retracts, the chamber volume expands, creating a local vacuum that opens the inlet check valve to draw in fluid. When the plunger advances, the chamber volume contracts, compressing the fluid and increasing its pressure. This forces open the outlet check valve, delivering high-pressure fluid into the pipeline. This process compensates for pressure losses along the pipeline and meets downstream demand.

Technical Parameters and Specifications

Performance

• Wide output pressure range: Flexible output from low to ultra-high pressure can be achieved by adjusting piston stroke or rotational speed to meet diverse high pressure application requirements.
• High flow regulation precision: Within the rated flow range, it precisely matches stringent fluid flow demands across different process stages, ensuring production stability and consistent product quality.
• Excellent suction performance with low net positive suction head required (NPSHr), enabling efficient fluid intake at low inlet pressures. Particularly suitable for drawing liquids from deep wells, storage tanks, and other low-level containers, reducing reliance on pre-installed feed pumps.
• Exceptional efficiency is achieved through optimized hydraulic design and precision manufacturing, delivering volumetric efficiency exceeding 90%. Overall efficiency surpasses comparable pump models, significantly reducing energy consumption and yielding substantial long-term cost savings for users.
• Strong environmental adaptability: Operates stably across diverse ambient temperatures while offering robust dustproof, waterproof, and shock-resistant performance. Suited for demanding environments like oilfield field operations and underground mining.
